TB MC 400 V

Performance

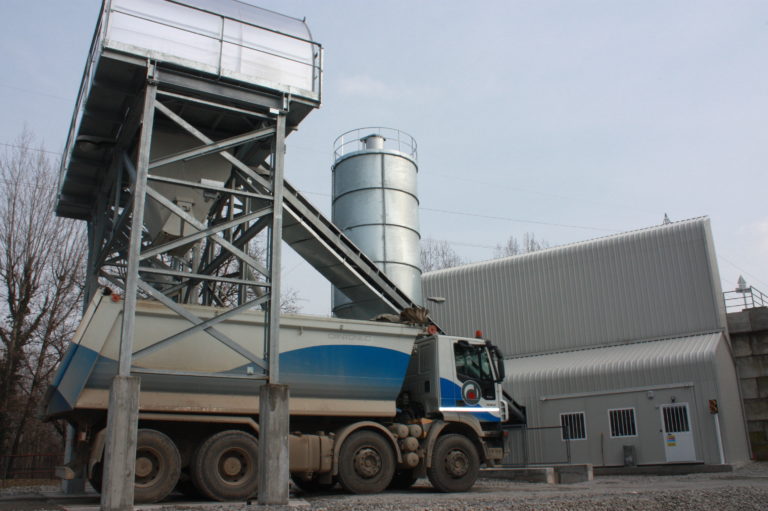

Such facilities have been developed for the execution of railway, road,airport as well as dam works.
It does not require special and costly foundation work and is distinguished by rapid installation and commissioning.

Upgrade

Also available is a wide range of on-demand accessories to meet every need.

TECHNICAL DRAWINGS

Gallery

Data Sheet

FeatureUnits of MeasurementValue
Hourly productionton/h400
Production for continuous mixed cycle200
Mixer power supplywithTAPE
Maximum aggregate size usedmm70
Compartments with 6 mm thick Hardox 450 coatingsn2
INERTI - Fixed base framemt2,20×8
INERTI - Storage capacity60
INERTI - Vibrators of the pass-through type on the metering cone.n1+1
INERTI - Volumetric extractor tape 600 mm x 2.00 mtn1+1
INERTI - Motovariator controlled by inverterkw7,5
CONTINUOUS MIXING GROUP - Mixer Motor Power.kw15+15
CONTINUOUS MIXING GROUP - Mixer support portal structuren1
CONTINUOUS MIXING GROUP - 800 mm inclined conveyor beltmt19
CEMENT - Rotary valve with invertern1
CEMENT - Cement batcher - minimum/maximum levelsn1
CEMENT - Loading auger193÷219 mm x 11 mt
PNEUMATIC - Two-stage piston compressorn1
PNEUMATIC - Engine powerkw3
WATER - Proportional valve managed by invertern1
CONTROL PANEL - Electrical control panel.n1
CONTROL PANEL - Automation and Production Recording.n1 PC
CONTROL FRAMEWORK - Delivery noteoptional
CONTROL PANEL - Emulsion/additive management.optional
TENSIONV380/400 Hz 50
